| Model: | 2NZS9 | Type: | Washing Thickener |
|---|---|---|---|
| Diameter (m): | 9 | Depth of Center Tank (m): | 5.91 |
| Subsidence Area (m2): | 127.3 | Revolution of Harrow Frame (r/min): | 0.28 |
| Capacity (t/d): | ≤ 88 | ||
| برجسته: | mining industry equipment,mining safety equipment |
||

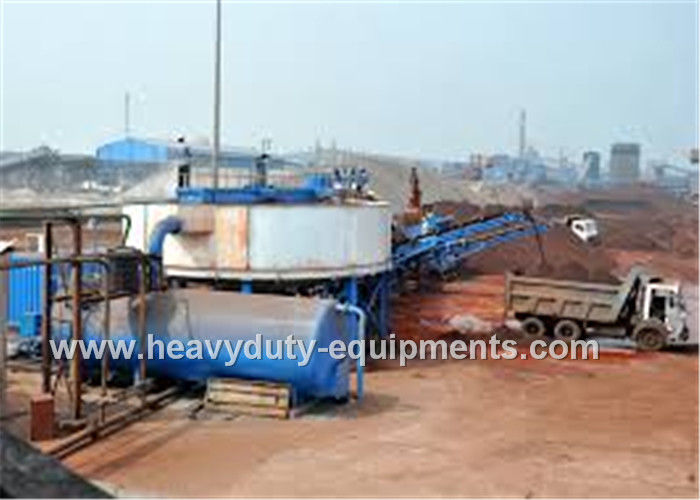

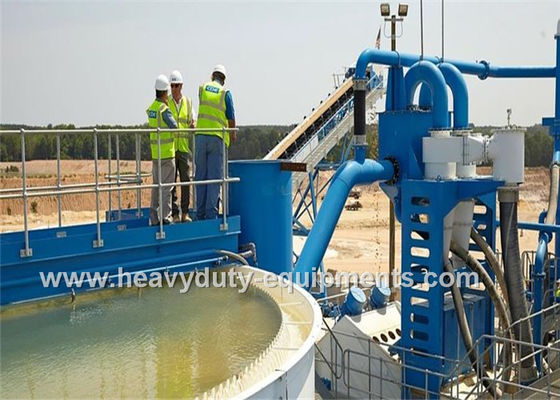

9m diameter Washing Thickener applicable to scrubbing in wet metallurgy
Specification:
| Spec. | 2NZS9 |
| Diameter (m) | 9 |
| Depth of Center Tank (m) | 5.91 |
| Subsidence Area (m2) | 127.3 |
| Revolution of Harrow Frame (r/min) | 0.28 |
| Capacity (t/d) | ≤ 88 |
| Motor Model | Y132M1-6 |
| Motor Power (kW) | 4 |
| Weight (kg) | 54628 |
| Remarks | Including the pond weight |
| Capacity | 10-250t/h |
Description:
Washing thickener for solid-liquid separation of gold leaching liquid.
1.The continuous ore discharge method can reduce the multiple cycle of liquid gold.
2.Extending the time of pulp staying in the washing thickener to improve the leaching rate;
3.Countercurrent washing, large capacity and high washing efficiency
4.Small area taken, reasonable structure and low cost of operation and maintenance.
It is mainly used to countercurrent scrubbing of gold cyaniding process. Three layers washing thickener is also applicable to scrubbing and dehydration in wet metallurgy, light industry and chemical industry.
