Model: | SR04D-5 | Engine: | Deutz D2011L3I |
---|---|---|---|
Total Weight (Kg): | 4000 | Front wheel weight (kg): | 2000 |
Vibratory drum width (mm): | 1380 | Static linear load (N/cm): | 142/142 |
برجسته: | road machinery equipment,road construction safety equipment |

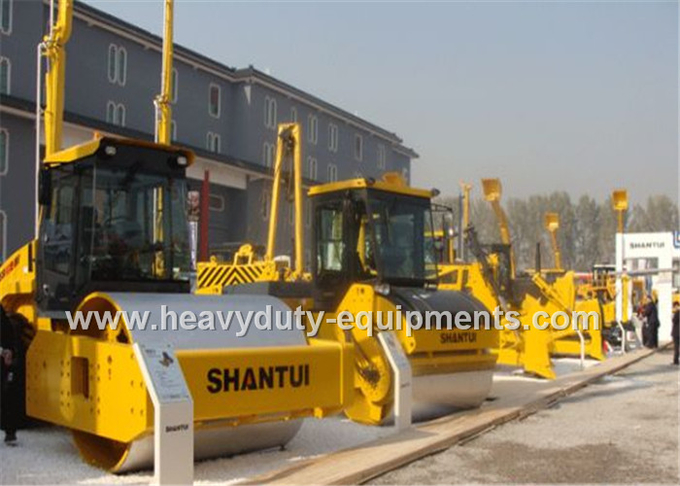

Shantui double drum road roller SR04D-5 designed for treatment of top surface areas for roads
Specification:
Model | SR04D-5 | High vibration amplitude | 0.5 |
Length × width × height (mm) | 2725×1484×2692 | Low vibration amplitude | -- |
Total weight (kg) | 4000 | Vibration frequency (high/low) (Hz) | 50 |
Front wheel weight (kg) | 2000 | Centrifugal force (high/low) (kN) | 34.1 |
Theoretical gradeability (%) | 30 | Engine model | Deutz D2011L3I |
Vibratory drum width (mm) | 1380 | Static linear load (N/cm) | 142/142 |
Description:
SR04D-5 double-drum vibratory road roller with 50Hz vibration frequency is applicable for the operations of small projects for town roads, sidewalks, and parking lots, which can not only guarantee the high construction quality, but also avoid the application waste of large road roller and save the machinery cost for the user. This product is specially applied for the repair compacting of asphalt roads and roads with low traffic load.
Advantage:
1. The design of single gearshift joystick enables the user to select appropriate direction and speed by simply pushing forward and backward the joystick, featuring simple and labor-saving control and high comfort.
2. The single-pump double-motor drive system is reasonably calculated and optimized to guarantee the excellent performance of the drive system.
3. The water sprinkling system adopts three-stage filtration mode to prevent blockage.
4. Four scrapers for the front and rear vibratory drums are made of special material to prolong the effective scraping time, guarantee the surface cleanliness of steel drums, and reduce the maintenance cost.
5. The engine hood adopts the lightweight design to easily open for a large angle with the assistance from the start strut.
6. All maintenance points are easily accessible to guarantee the rapid checking and maintenances and shorten the maintenance shutdown time.
