جزئیات محصول:
پرداخت:
|
| Operating weight: | 18230kg | Engine: | LR6A3Z-20 |
|---|---|---|---|
| Engine power: | 160hp | Bulldozer shovel（W×H）: | 4210x1688mm |
| Blade type: | Rubbish blade | Blade capacity: | 9.6 m3 |
| Ripper: | optional | ||
| برجسته: | shantui construction machinery,heavy equipment bulldozer |
||

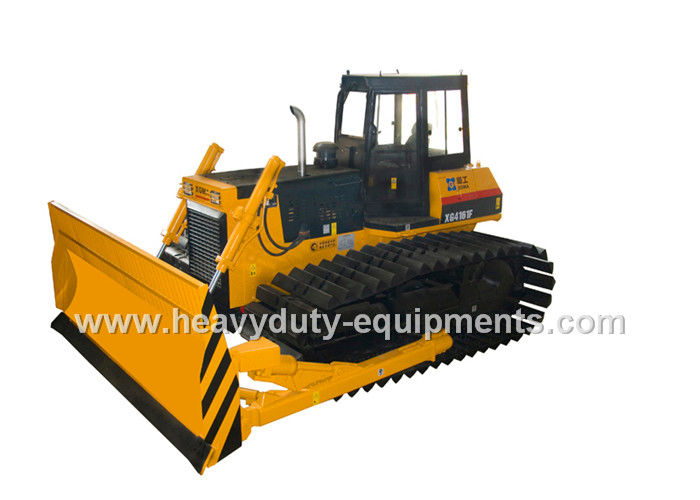

XGMA XG4160S bulldozer with rubbish disposal blade , 2170mm track gauge
Specification:
| Model | XG4160S | Engine model | LR6A3Z-20 |
| Operating weight | 18230kg | Main ground Clearance | 510 mm |
| Min turning radius | 4.3m | Grade ability | 30° |
| Blade type | Rubbish blade | Blade capacity | 9.6 m³ |
| Track gauge | 2170 mm | Ground pressure | 0.03 MPa |
| Blade width * height | 4210x1688mm | Max Depth | 426 mm |
| Track type | Sealed, assembled single-grouser | Number of track shoes | 44 (each side) |
| Width of Track shoes | 1070mm |
Flywheel horse power |
160hp |
Description:
Industry-leading driving force, efficient work, Sensitive and reliable manipulation, easy to maintain.
Advantages:
1. Awarded the ISO9001:2000 system certificate
2. Engine model: WEICHAI WD10G175E15
3. Flywheel horsepower: 160 HP (120 KW)/1850RPM
4. Operating weight (straight-tilt dozer): 18100kg
5. Made using KOMATSU D60P-8 bulldozer technology, XGMA bulldozer features high performance, great efficiency, safe and reliable operation
6. Taking the advantage of lower ground pressure, the bulldozer is suitable to be used in swamp and soft land application
7. Optional attachments: air conditioner, rubbish disposal blade.
Application:
Earth moving projects, bulldozing, digging, landfill, and other bulk operations.
