جزئیات محصول:
پرداخت:
|
| Model: | SD22R | Engine: | Cummins NT855-C280S10 |
|---|---|---|---|
| Operating weight (Ripper not included): | 26t | Number of carriers (each side): | 2 |
| Number of track rollers (each side): | 8 | Number of track shoes (each side): | 45 |
| برجسته: | dozer construction equipment,heavy equipment bulldozer |
||

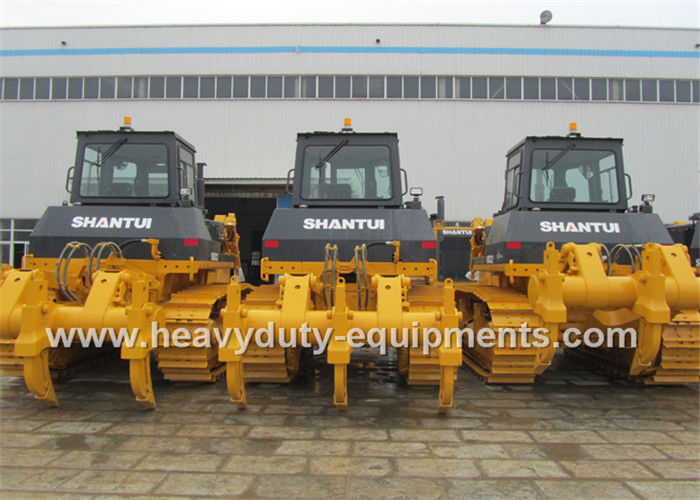

Shantui bulldozer SD22R with 26tons operating weight 12m3 dozing capacity
Specification:
| ITEM | SD22R | Engine | Cummins NT855-C280S10 |
| L×W×H (Ripper not included) | 6290×4365×3435 mm | Ripping depth of ripper | Single ripper 695mm |
| Operating weight (Ripper not included) | 26t | Three-shank ripper 666mm | |
| Rated power | 162/1800kW/rpm | Lifting height of ripper | Single ripper515mm/Three-shank ripper 555mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type | R-blade | Number of track rollers (each side) | 8 |
| Blade width | 4365x1885mm | Number of track shoes (each side) | 45 |
| Width of track shoe | 910mm | ||
| Track gauge | 2250mm | ||
| Ground length and ground pressure | 3480-0.041mm/MPa | ||
| Dozing capacity | 12m3 | Pitch | 216mm |
| Forward speed | 0–3.6km/h | ||
| 0–6.5km/h | |||
| 0–11.2km/h | |||
| Ma× drop below ground of blade | 550 mm | Reverse speed | 0–4.3km/h |
| Lift height of blade | 1330 mm | 0–7.7km/h | |
| Ripper type | - | 0–13.2km/h |
Description:
Using a swamp bulldozer track, the SD22R landfill bulldozer is able to reduce ground pressure and has excellent maneuverability, easily adapting it to work in landfills which may contain high liquid capacities.
Advantage:
1. Optional attachments include a high positioning warning lamp, a reverse warning alarm, a camera and an LCD screen, which can all greatly improve safety during operation.
2. Its equipped with a rubbish blade with a large capacity and mud-flaps which can improve working efficiency.
3. The SD22R has central lubrication, central pressure measurement and automatic track tension systems which contribute to convenient and timely observation and maintenance.
