جزئیات محصول:
پرداخت:
|
| Model: | SD22F | Engine: | Cummins NT855-C280S10 |
|---|---|---|---|
| Operating weight (Ripper not included): | 23.4t | Blade type: | Straight tilt blade |
| Blade width: | Straight tilt blade 3725×1315 | Dozing capacity: | Straight tilt blade 6.4 |
| برجسته: | dozer construction equipment,heavy equipment bulldozer |
||

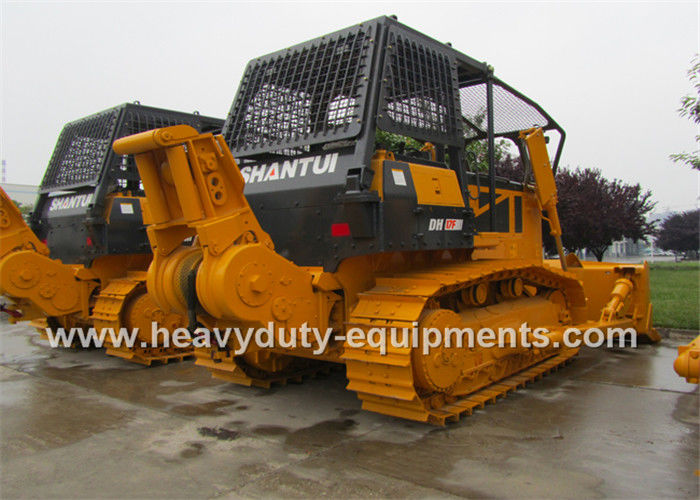

Shantui bulldozer SD22F equipped with the wider track and the mechanical winch
Specification:
| ITEM | SD22F | Engine | Cummins NT855-C280S10 |
| L×W×H (Ripper not included) | 5750×3725×3395mm | Ripping depth of ripper | Single ripper 695mm Three-shank ripper 666mm |
| Operating weight (Ripper not included) | 23.4t | ||
| Rated power | 162/1800kW/rpm | Lifting height of ripper | Single ripper515mm Three-shank ripper 555mm |
| Gradeability | 30° | Number of carriers (each side) | 2 |
| Blade type | Straight tilt blade | Number of track rollers (each side) | 6 |
| Blade width | Straight tilt blade 3725×1315 | Number of track shoes (each side) | 38 |
| Width of track shoe | 560mm | ||
| Track gauge | 2000mm | ||
| Ground length and ground pressure | 3050-0.072mm/MPa | ||
| Dozing capacity | Straight tilt blade 6.4 | Pitch | 216mm |
| Forward speed | 0–3.6km/h | ||
| 0–6.5km/h | |||
| 0–11.2km/h | |||
| Ma× drop below ground of blade | 540 mm | Reverse speed | 0–4.3km/h |
| Lift height of blade | 1210 mm | 0–7.7km/h | |
| Ripper type | Single ripper Three-shank ripper | 0–13.2km/h |
Description:
Based on the SD22, the SD22F forest type bulldozer is specially designed for operations in wooded areas.
Advantage:
The SD22F has advanced performance, high reliability, low fuel consumption and convenient maintenance. It's equipped with a ROPS canopy and cab, a wider track ( 610 mm ) and a mechanical winch. The SD22F has excellent maneuverability and self-rescue capabilities. The SD22F easily adapts to logging, stacking, hauling and transporting work in wooded areas.
