جزئیات محصول:
پرداخت:
|
| Model: | SD13S | Engine: | Shangchai SC8D143G2B1 |
|---|---|---|---|
| Operating weight (Ripper not included): | 14.9t | Number of carriers (each side): | 2 |
| Dozing capacity: | 3.3m3 | Lift height of blade: | 930mm |
| برجسته: | shantui construction machinery,heavy equipment bulldozer |
||

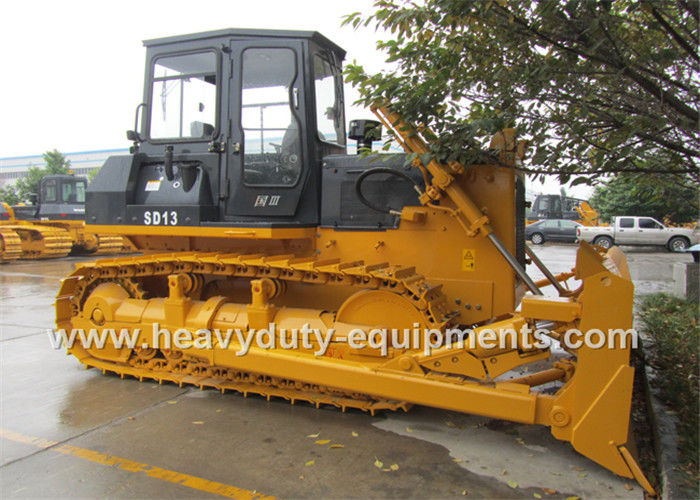

Shantui bulldozer SD13S equipped with single control lever and the hexahedron cabin
Specification:
| ITEM | SD13S | Engine | Shangchai SC8D143G2B1 |
| L×W×H (Ripper not included) | 4492×3450×3000mm | Ripping depth of ripper | - |
| Operating weight (Ripper not included) | 14.9t | - | |
| Rated power | 63kw | Lifting height of ripper | - |
| Grade ability | 30 | Number of carriers (each side) | 2 |
| Blade type | Straight tilt blade | Number of track rollers (each side) | 6 |
| Blade width | 3450×980mm | Number of track shoes (each side) | 38 |
| Width of track shoe | 700mm | ||
| Track gauge | 1880mm | ||
| Ground length and ground pressure | 2365-0.044kpa | ||
| Dozing capacity | 3.3m3 | Pitch | 190mm |
| Forward speed | 0-3.2 | ||
| 0-5.9 | |||
| 0-9.8 | |||
| Max drop below ground of blade | 590mm | Reverse speed | 0-3.9 |
| Lift height of blade | 930mm | 0-7.1 | |
| Ripper type | - | 0-11.9 |
Description:
The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations.
Advantage:
1. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
2. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
3. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
