Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length

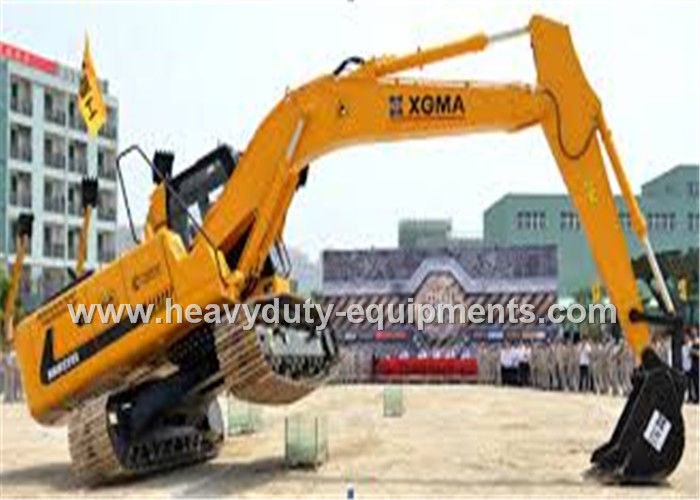

: تصویر بزرگ : Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length

جزئیات محصول:

Place of Origin:	China
نام تجاری:	SINOMTP
گواهی:	ISO/CCC/BV
Model Number:	XG836EL

پرداخت:

Minimum Order Quantity:	1 unit
قیمت:	negotiation
Packaging Details:	NUDE
Delivery Time:	35 days after payment
Supply Ability:	100 units per month

مخاطب

توضیحات محصول جزئیات

Engine:	ISUZU AA-6HK1XQP	Overall operating weight:	33800kg
Bucket capacity:	1.6 m³	Max digging radius:	11120 mm
Max digging depth:	7360mm	Max digging height:	10240mm
برجسته:	hydraulic system excavator , crawler hydraulic excavator

Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length

Engine	ISUZU AA-6HK1XQP	Working device	Standard arm
Overall operating weight	33.8t	Bucket capacity	1.6 m³
Max. excavation force	162/240 KN	Swing speed	9.8 r/min
Traveling speed	5.3/3.1 km/h	Overall dimensions (LxWxH)	11170x3440x3265 mm
Max digging radius	11120 mm	Max digging depth	7360mm
Max digging height	10240mm	Engine rated power	190.5 kw
Length of track	4941 mm	Gradeability	35°
Track gauge	2740 mm	Cabin	Standard

Description:

Advantage:

Powered bu the high-quality Isuzu turbocharged&inter cooled engine, which is a fuel-efficient low-emission engine.
The machine’s lifting force is increased by 14%, resulting in the substantial increase of operating efficiency.
Main stressed parts are built by welding the new, high-strength steel parts together, to increase the strength of the work equipment.
The draw bar pull during travel is up to 270KN, increased by 8%.

Application:

Excavator is important in construction project, by using bucket to dig materials and loading to transport trucks.

Crawler Mounted Hydraulic Mining Excavator Long Boom 4941mm Track Length
