جزئیات محصول:
پرداخت:
|
| Engine: | Shangchai | Model: | SC11CB220G2B1 |
|---|---|---|---|
| Bucket Capacity ( m3): | 3.0 | Rated power: | 162 |
| Rated Load (kg): | 5000 | Dumping reach (mm): | ≥1185 |
| برجسته: | Wheel Loader equipment,loader construction equipment |
||

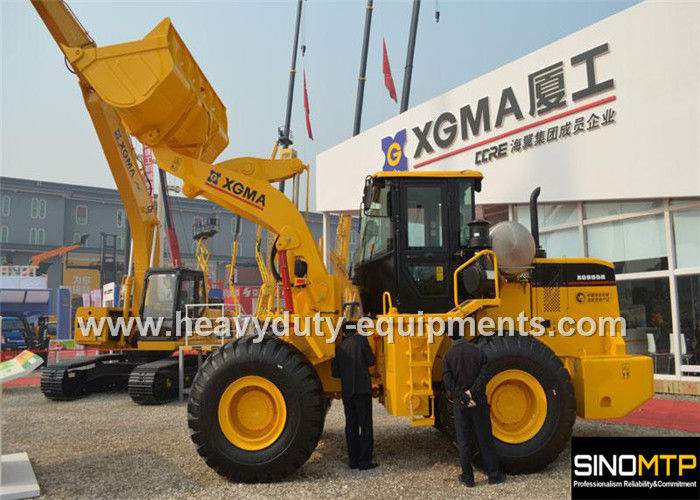

XGMA XG955H wheel loader with standard 3.0m3 bucket with radio / cassette
| Item | XG955H | Engine | Shangchai |
| Model | SC11CB220G2B1 | Bucket Capacity ( m3) | 3.0 |
| Rated power | 162 | Rated Load (kg) | 5000 |
| Rated speed (rpm) | 2200 | Dumping reach (mm) | ≥1185 |
| Working Arm | Standard | Cycle Time (s) | ≤11.0 |
| Lifting time of lift arm (s) | ≤6.0 | Min truning Radius (mm) | 6650 |
| Max. gradeability (°) | 28 | Max Breakout Force (KN) | 170 |
| Operating Weight (kg) | 17200 | Dimension (L*W*H) (mm) | 7710*2880*3450 |
| Quick Coupler | Yes | Attachment | Optional |
Description:
High Reliability: Upgraded & enhanced front & back frames,Optimized H-series bucket
Enhanced front axle of the H-Series, Enhanced brake caliper,Fully optimized layout of pipes, Waterproof connectors, Improved painting process
Advantage:
1.The turbocharged, air-air inter cooled engine technology increases power output by 30%, reduces fuel consumption by 10%, and improves reliability by 30%.
2.The proprietary optimization technology offers a small turning radius, strong maneuverability, and high flexibility.
3.XGMA’s loaders have the biggest traction under combinatory operating conditions in the
